Hamme Hydro All-in-One

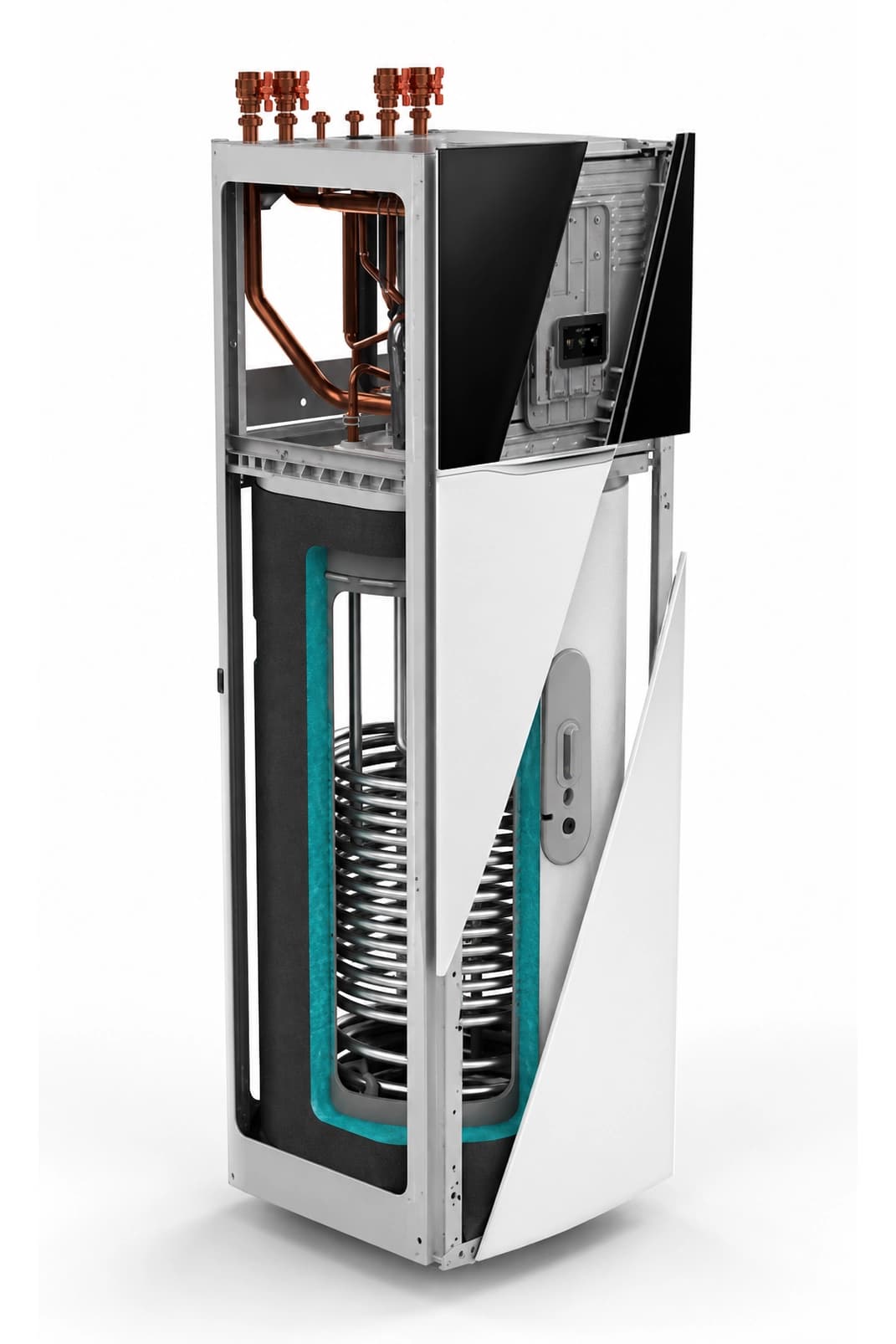

HRA100M2HM160-GBAUF Hamme Hydro All-in-One is an indoor heat pump unit combining a hydrobox with an integrated DHW tank. Using R290 refrigerant and advanced inverter technology, it delivers efficient space heating, cooling and domestic hot water in a single compact unit. Designed for quiet indoor installation, it includes a built-in backup electric heater for reliable operation in all conditions.
A+
Hydro All-in-One
R290
Heating, cooling and DHW in one indoor unit
BAUF Hamme Hydro All-in-One combines a 16 kW heat pump block, 240 L domestic hot water tank and backup electric heater in a single floor-standing cabinet for compact plant-room installation.
240 L
Integrated DHW tank
25-75°C
DHW setting range
6 kW
Backup heater
Space heating
Space cooling
Domestic hot water
Indoor installation
Compatible products
Specifications
HRA100M2HM160-GLeaving water temperature range | Heating | °C | 20~80 | |
|---|---|---|---|---|
Cooling | °C | 5~25 | ||
Water setting temperature | DHW | °C | 25~75 | |
Refrigerant | R290 | |||
Water piping connection | Water piping connection | inch | 1 | |
Water piping connection (DHW) | inch | 3/4 | ||
Expansion tank | L | 8 | ||
Power supply | 220-240/1/50 | |||
DHW Tank | DHW Tank Volume | L | 160 | |
Max. water pressure | bar | 7 | ||
Tank heater | kW | 3 | ||
COP | 3,16 | |||
Efficiency class LWT at 35°C | A+ | |||
Backup electric heater | Power supply | 220-240/1/50 | ||
Backup electric heater | kW | 1+2 | ||
Sound power | dB | 40 | ||
Indoor unit | Net Dimension (W х D х H) | mm | 590×590×1580 | |
Packed dimensions (W х D х H) | mm | 695×695×1860 | ||
Net weight | kg | 103 | ||
Gross weight | kg | 121 | ||
